| Model No. | Max. Pressure | Max. Displacement | Max. |
Mounting Standard |
||
|---|---|---|---|---|---|---|
| psi | bar | in³ / rev | cm³ / rev | rpm | ||
| VT6GC | 4000 | 275 | 0.66 - 6.10 | 11 - 100 | 2800 | R - 17 - 102 |

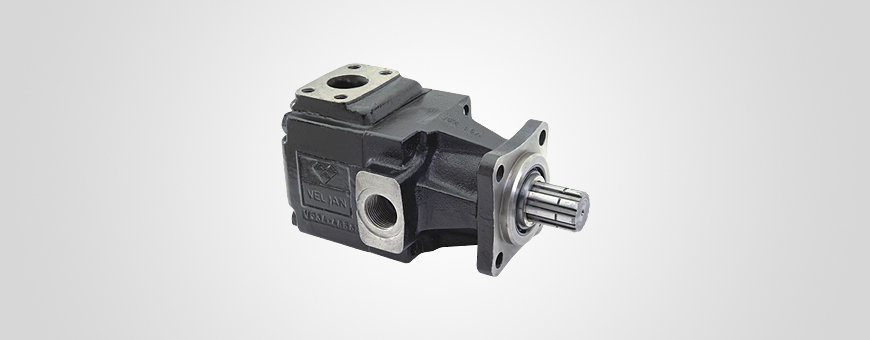

These are designed for PTO drives with direct installation and the shaft can take higher radial loads than VT6C pumps (up to 7500N). These are provided with a double row ball bearings with additional needle bearings and two shaft seals.
Download Data Sheet
